Application:
⊙Full solution for channel letter & light box from 40 to 250mm (1.6 to 10 inch)
⊙One family one bin
Features & benefits:
⊙Lit by Philips Lumileds LED, L70B50>50000 hrs
⊙High efficiency over 100 lm/W
⊙3 MacAdam ellipse each bin
⊙165 degree own design optics
⊙Aluminum PCB for heat dissipation
⊙All components protected by PC cover, high reliability
Color Available:
|
Part No. |
LED QTY |
Beam Angle |
Input Vol |
Power/pc
|
Lumen/pc |
Max QTY/serie |
|
UTW611B
|
1 pcs |
165° |
DC12V |
0.48W |
48 lm |
50 pcs |

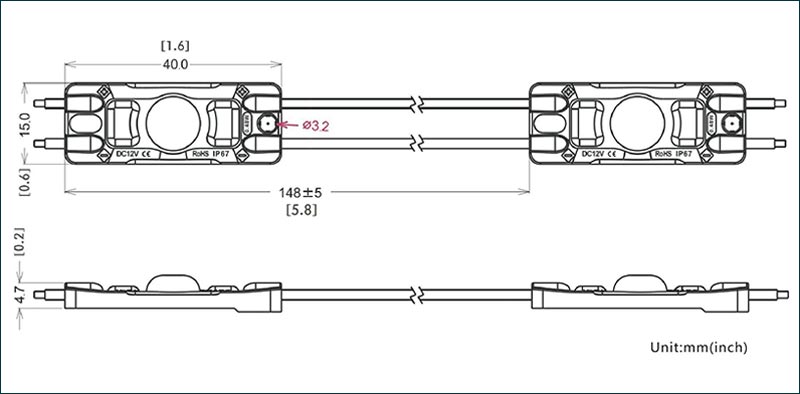

Dimensions:
