Application:
⊙Full solution for channel letter & single side light box from 40 to 250mm (1.6 to 10 inch)
⊙One family one bin
⊙All color available (except RGB)
Features & benefits:
⊙High efficiency over 93 lm/W
⊙3 MacAdam ellipse each bin
⊙160 degree own design optics
⊙Aluminum PCB for heat dissipation
Color Available:
|
Part No. |
LED QTY |
Beam Angle |
Input Vol |
Power/pc
|
Lumen/pc |
Max QTY/serie |
|
UTW377B
|
3pc |
160° |
DC12V |
0.9W |
84lm |
40pcs |

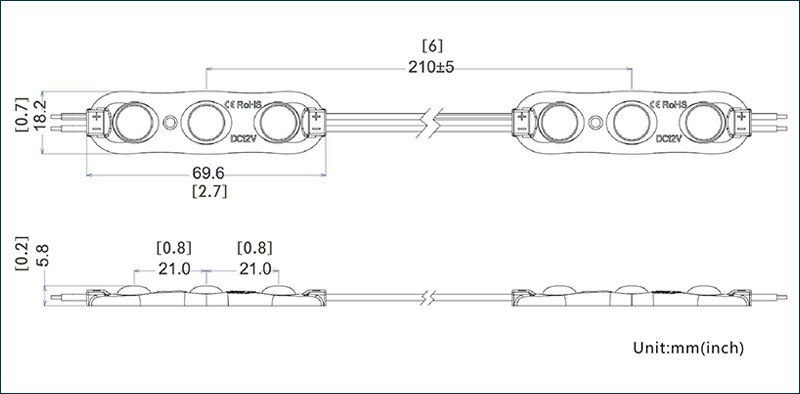

Dimensions:
