Mini Modules



Application:

Best solution for channel letters & acrylic letters from 25mm to 60mm (1 to 2.4 inch)
One family one bin
All color available (except RGB)



Features & benefits:
MINI size designed for small letters
High efficiency over 93 lm /W
3 MacAdam ellipse each bin
160 degree own design optics



Color Available:






Part No.

 LED QTY

 Beam Angle

 Input Vol



 Power/pc



 Lumen/pc

 Max QTY/serie



UTW801A



1pc

160°

DC12V

0.36W

34lm

50pcs

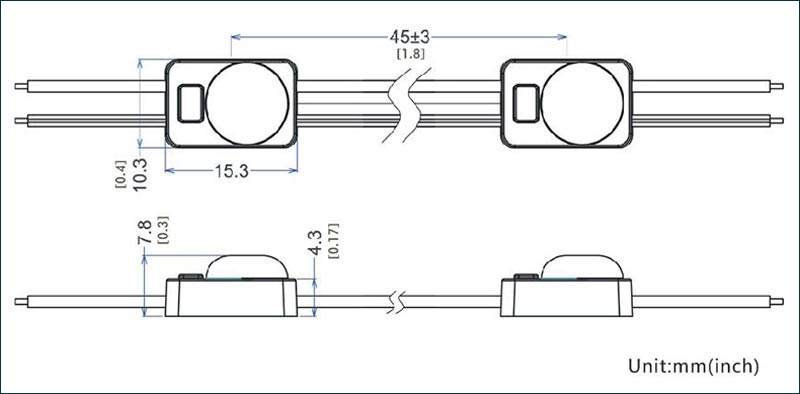

Dimensions:
